Telo-telo-tsipika telo misy rindrina vita amin'ny rindrina misy sivana mavitrika
Amin'ny maha mpamatsy china Shina, i Geya dia manolotra ny sivana telo miisa telo mianadahy mipetaka amin'ny rindrina henjana telo, izay mampiseho ny fampisehoana sy ny faharetana ary ny fametrahana mora, ary ny fanalefahana tsara. Tonga lafatra ho an'ny indostria samihafa, ity sivana ity dia ankasitrahan'ny mpanjifanay maneran-tany. Alefaso eto ambany ny fanontanianao eto ary hiaina ny hafainganam-pandehan'ny valinteninay indrindra ao anatin'ny 24 ora!

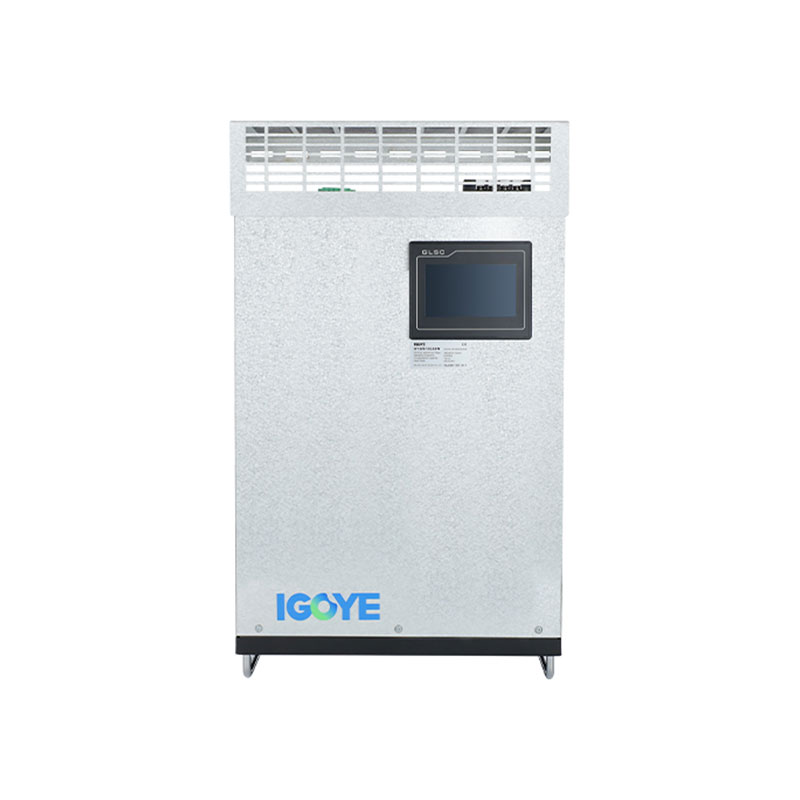

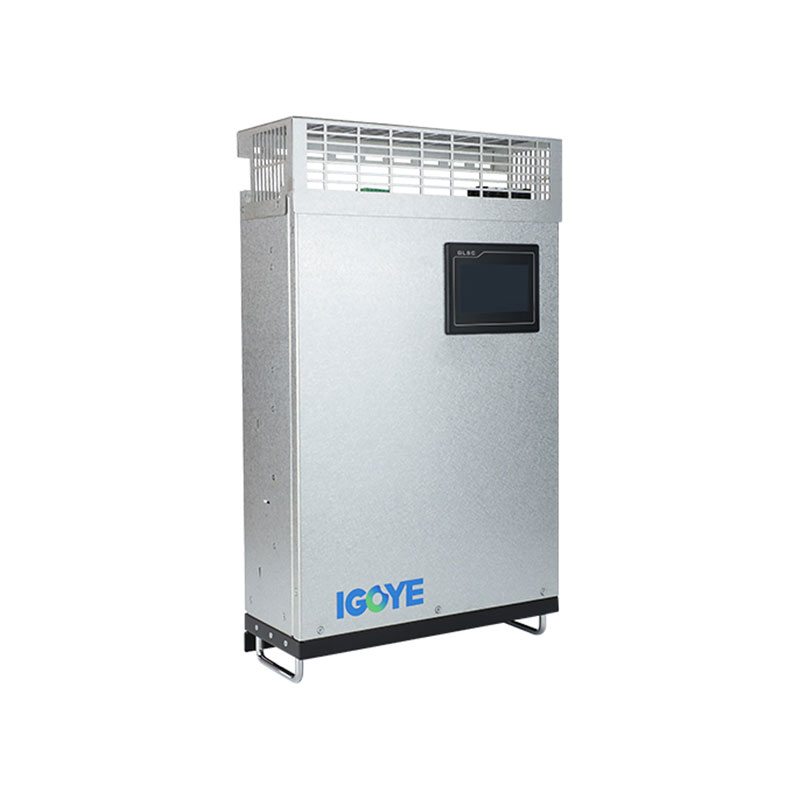

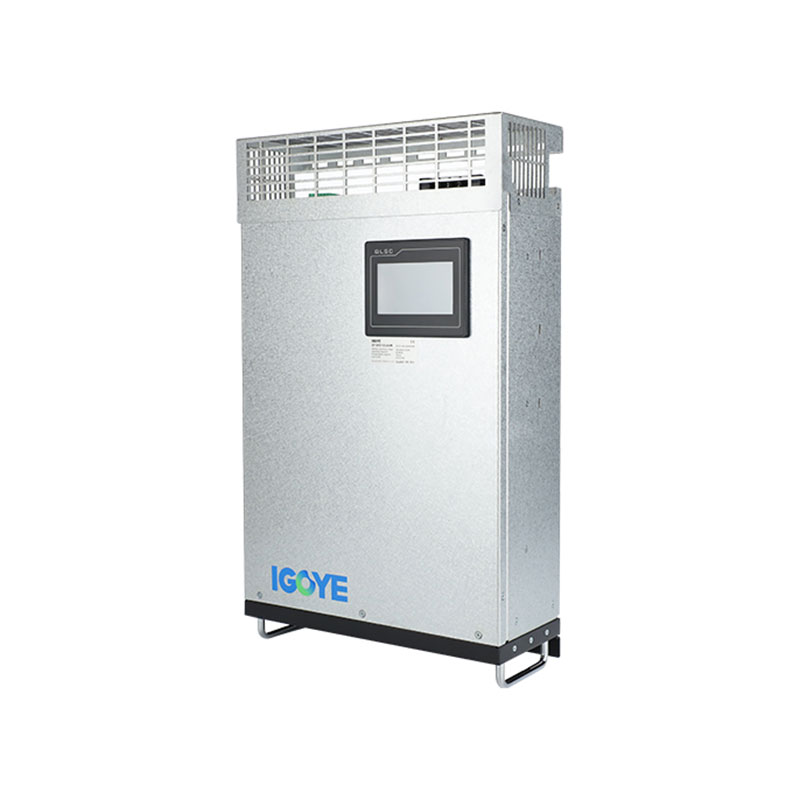

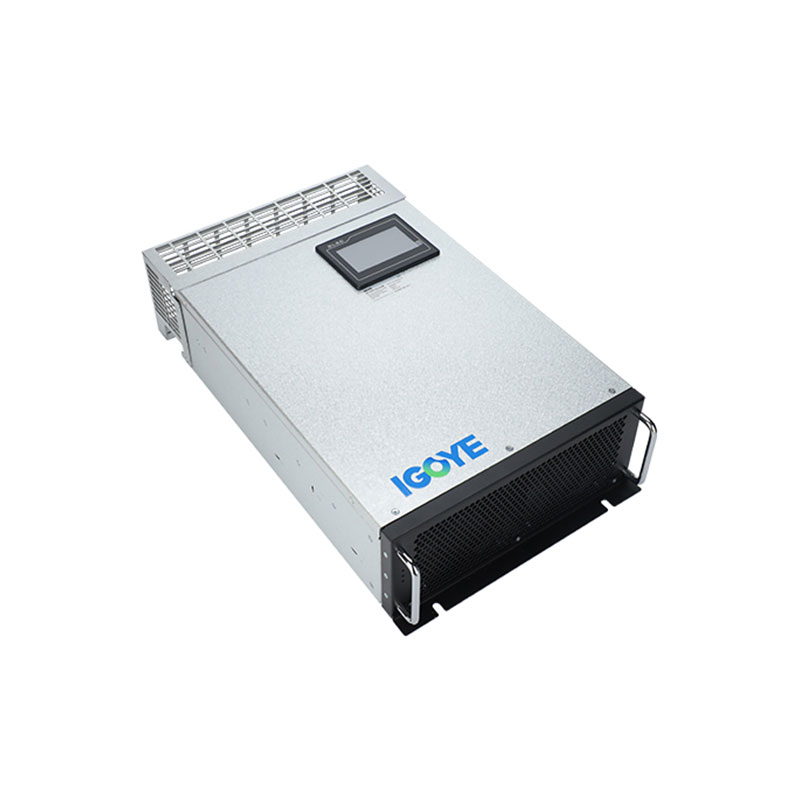

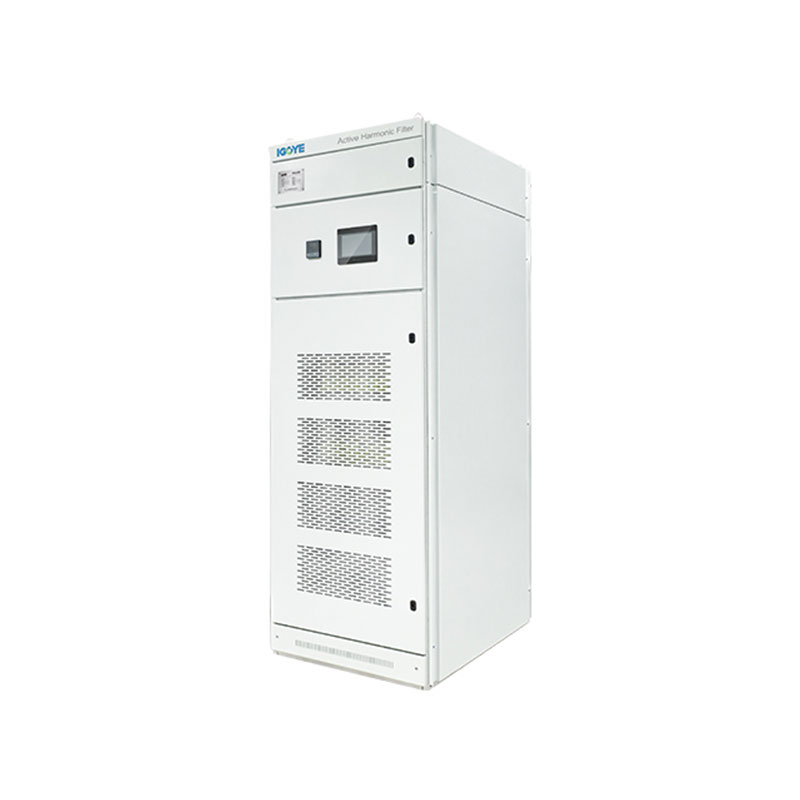

The Three-phase three-wire Wall-mounted Active Harmonic Filter (APF) dynamically mitigates harmonic currents, improving power quality in three-phase systems. This wall-mounted unit utilises advanced DSP+CPLD digital control and a three-level topology for precise harmonic compensation. It offers a wide filtering range (2nd to 50th harmonics), high filtering efficiency (up to 95%), and fast response time (<10ms). Modular design allows for scalable solutions through parallel connection. The filter also addresses three-phase imbalances and includes comprehensive protection features. Available in various current ratings (25A to 150A) and voltage levels (220V to 690V).
Model description:
| GY | AHF | 0.4 | 50A | / | 3L | W |
| Enterprise code | Active Harmonic Filter |
Voltage level 0.22:220V 0.4:380V±20% 0.5:500V±20% 0.69:690V±20% |
Rated Capacity（kvar） 25/50/75 /100/150A | 3L:Three-phase three-wire | W:Wall-mounted |
Features:
● Use DSP+CPLD all digital control core, three-level topology technology,
advanced harmonic detection algorithm and PWM control strategy to achieve
accurate compensation of harmonic current.

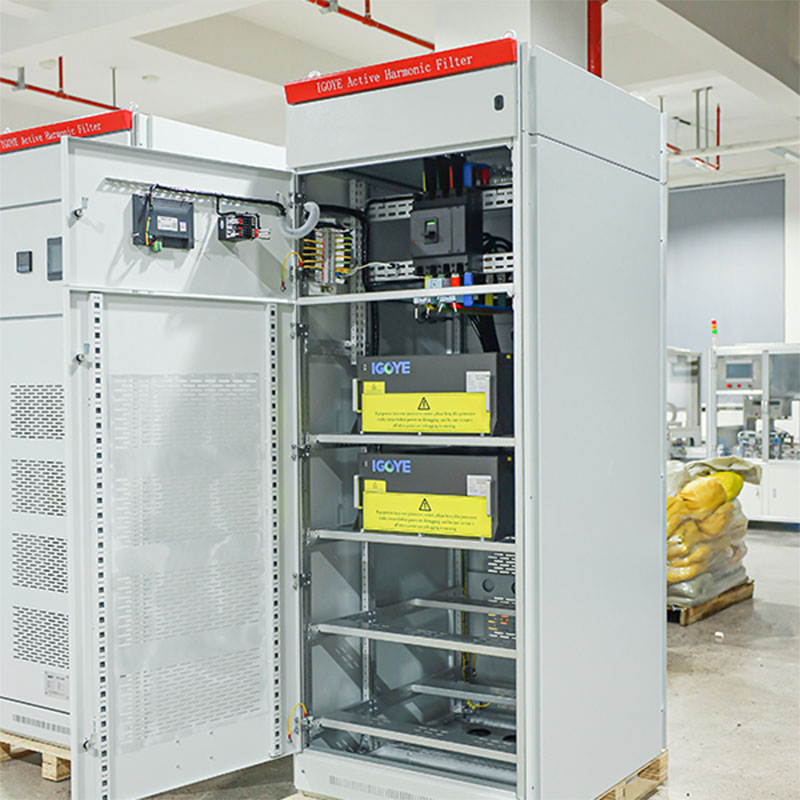

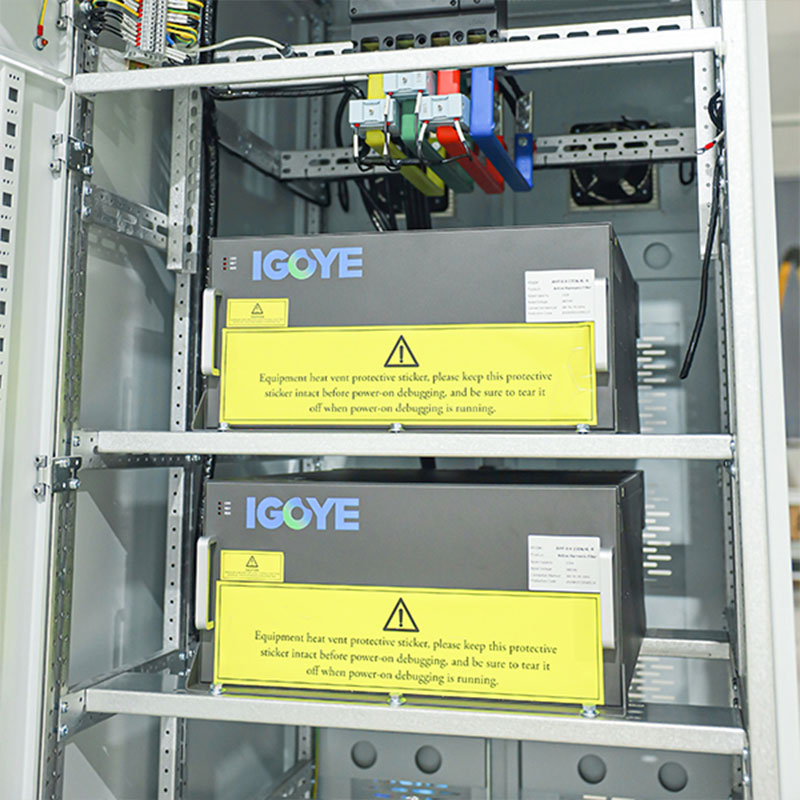

● Adopt modular design, which facilitates parallel connection of multiple
modules, takes up little space and is easy to maintain.

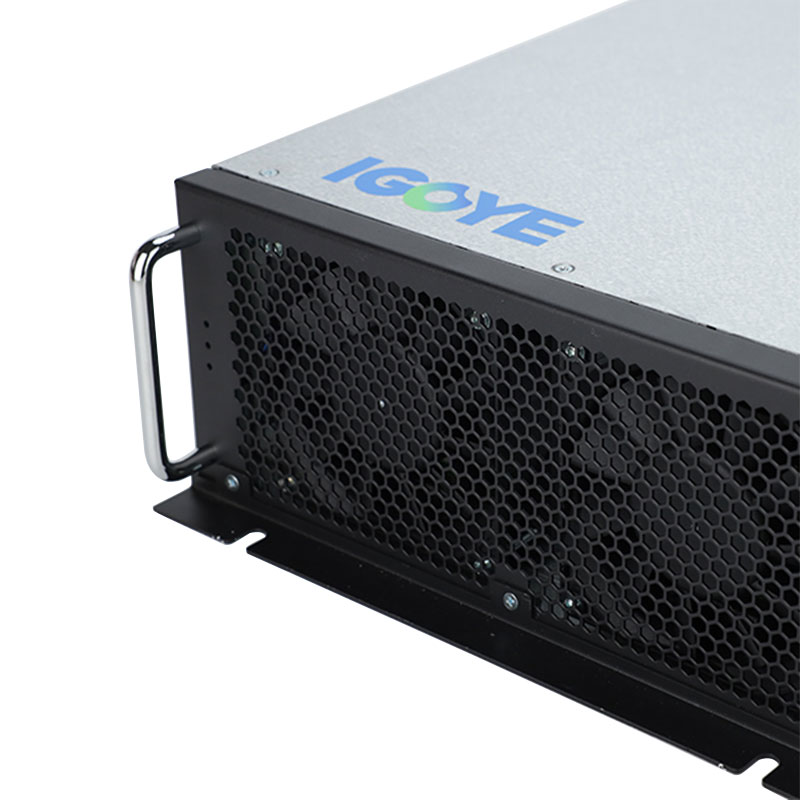

● The structural design of independent air ducts and independent warehouses
ensures the stable operation of the equipment.
● It can filter harmonics in a wide range of harmonics, from 2 to 50
harmonics, and solve the problem of three-phase unbalance at the same time.
● The harmonic filtering rate is high. If the capacity allows, the harmonic
current filtering rate can be as high as 95%. Set 100% current limiting output
to ensure long-term stable operation of the equipment.
Applications:
Three-phase three-wire Wall-mounted Active Harmonic Filters are ideal for various applications requiring precise harmonic mitigation:
● Data Centres: Protecting sensitive equipment from harmonic
distortion.
● Hospitals: Ensuring reliable power for critical medical
devices.
● Industrial Environments: Improving power quality in
manufacturing processes, including petrochemical, pharmaceutical, steel, and
semiconductor industries.
● Textiles and Light Industry: Enhancing efficiency and
reducing harmonic-related issues in textile and light industrial settings.
● Renewable Energy Systems: Integrating renewable energy
sources while maintaining grid stability.
Three-phase three-wire Wall-mounted Active Harmonic Filters offer a compact and effective solution for optimising power quality in diverse applications.
Technical Parameters:
| 220V series | 380V series | 500V series | 690V series | ||
| Altitude | < 2000m, above 2000m, derate according to GB/T3859.2 | ||||
| Ambient temperature | -20～+50℃ | ||||
| Relative humidity | ≤90%, no condensation on the surface when the monthly minimum temperature is 25℃ | ||||
| Pollution level | Level III below | ||||
| Operating Voltage | AC220V±20% | AC380V±20% | AC500V±20% | AC690V±20% | |
| Working frequency | 50Hz±5% | ||||
| Compensation current | 25A | 25/50/75/100 /150A | 100A | 100A | |
| Grid structure | L/N | 3P3W/3P4W | 3P3W/3P4W | 3P3W/3P4W | |
| Number of units connected in parallel | Ulimited | ||||
| Overall machine efficiency | ≥97% | ||||
| Grid structure | 32kHz | 16kHz | 12.8kHz | 12.8kHz | |
| Compensation range | 2～50times, single compensation rate is adjustable | ||||
| Function selection | Reactive power | Reactive power, reactive power + asymmetry | |||
| Reactive power compensation rate | ≥95% | >92% | |||
| Neutral filtering capability | Neutral line filtering capability is 3 times that of phase filtering capability | ||||
| Full response time | ＜10ms | ＜40ms | ＜40ms | ＜40ms | |
| Noise | ≤60dB | ≤60dB | ≤65dB | ≤65dB | |
| Control method | 2-way RS485 interface (supports GPRS/WIFI) | ||||
| Protection | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, power failure, overtemperature, frequency abnormality protection, etc. | Overload, software/hardware overcurrent, grid overvoltage and undervoltage, grid voltage imbalance, power failure, overtemperature, frequency abnormality, short circuit protection, etc. | |||
| Installation method | wall-mounted | ||||
| Incoming line | upper incoming（wall-mounted） | ||||
| Protection level | IP20 | ||||
Model& Specification:
| Models | ||||
|---|---|---|---|---|
| Model Number | Rated Current(A) | System voltage (V) | Dimensions (D*W*H) | Cooling method |
| GY APF-0.22-25A/2L-R/W | 25 | 220 | 220*330*160mm | Forced air cooling |
| GY APF-0.4-25A/4L-R/W | 25 | 380±20% | 460*490*89mm | |
| GY APF-0.4-50A/4L-R/W | 50 | 380±20% | 460*490*89mm | |
| GY APF-0.4-75A/4L-R/W | 75 | 380±20% | 500*510*190mm | |
| GY APF-0.4-100A/4L-R/W | 100 | 380±20% | 500*550*240mm | |
| GY APF-0.4-150A/4L-R/W | 150 | 380±20% | 500*550*240mm | |
| GY APF-0.5-100A/4L-R/W | 100 | 500±20% | 495*675*275mm | |
| GY APF-0.69-100A/4L-R/W | 100 | 690±20% | 495*675*275mm | |
